Description

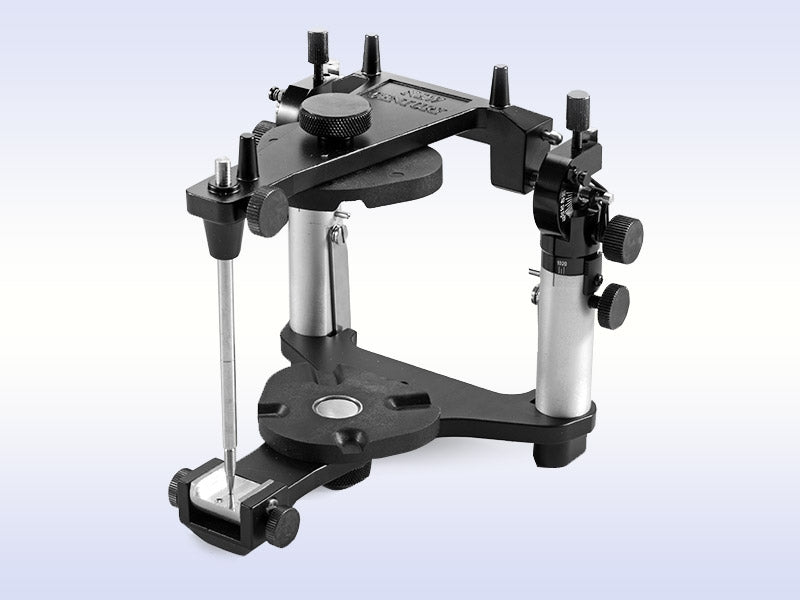

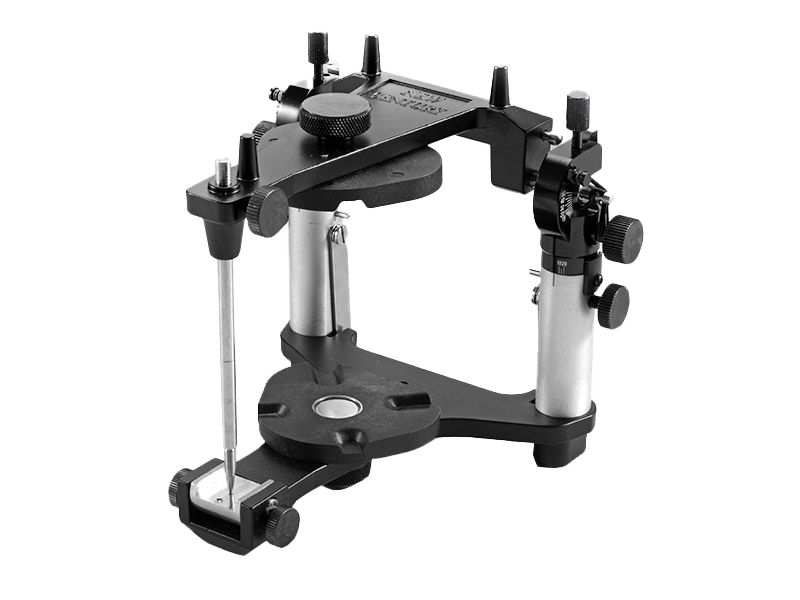

This is non-arcon type articulator which is used both for dentulous and edentulous cases.
The intercondylar distance is fixed for 110mm.
The sagittal condyle path can be adjusted up to 50° for younger generation.
The incisal path table for edentulous jaw is applied to diagnose edentulous jaw. The gauge of sagittal incisal path angle can be adjusted up to70° forwards and 70° backwards and can accommodate instant resin to construct custom incisal guidance.
The maxillary component opens to rear and can be secured at an angle of 130°.
The articulator includes the optional orientation jig, which can secure the upper and lower jaw casts on to the articulator without using a face-bow.
When positioning the maxillary cast, the articulator can be inverted and placed upright on the three supporting fulcrums of the maxillary component.
